DisplayPort Cables

PC Cable World's DisplayPort cable opens up new possibilities in computing, digital displays and consumer electronics. It’s the future standard and it’s available today.

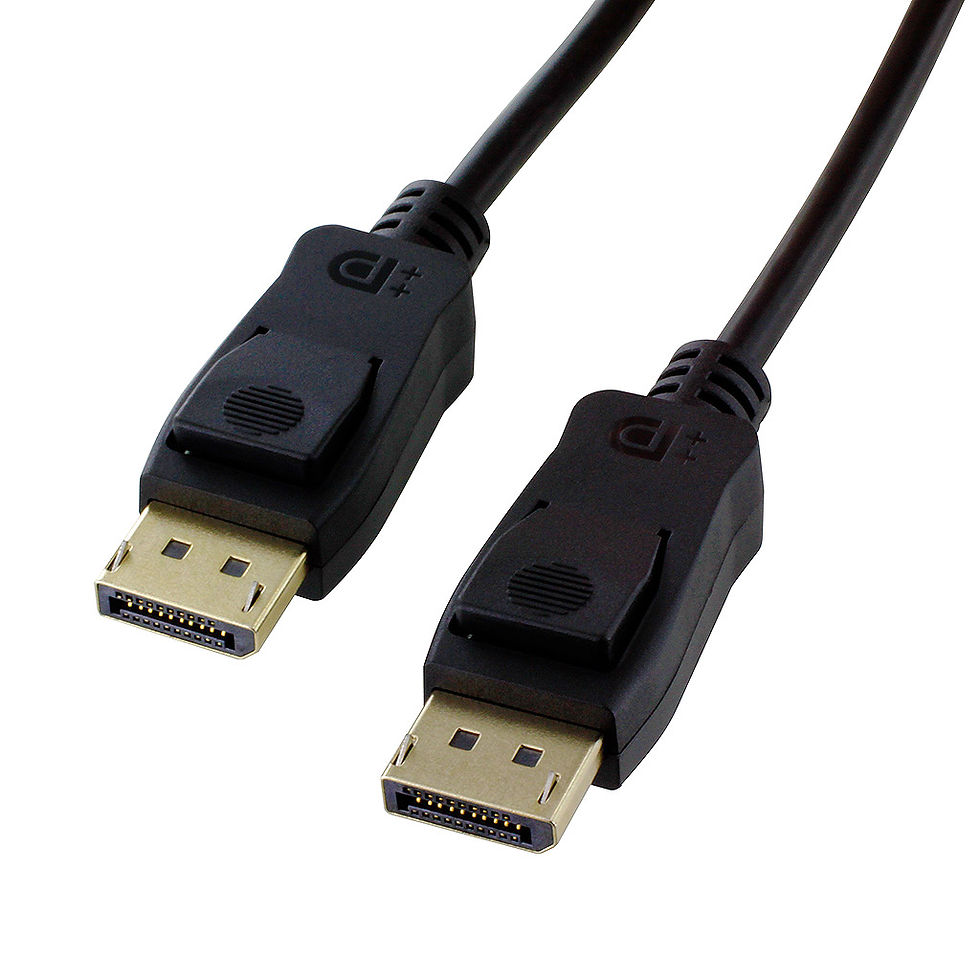

DisplayPort 1.2 Male to Male
  • DisplayPort 1.2 Male to Male Cable 28 AWG

  • Use to connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to an HD display

  • Supports high resolution displays up to 4K x 2K (3840 x 2160, 60Hz)

  • Video support: 4K x 2K (3840 x 2160, 60Hz)

  • Audio support: 16 or 24-bit PCM at 48, 96, or 192 kHz sampling rate uncompressed

  • Able to support full digital audio (up to 8 channels at 192 kHz rate) in the same cable

  • Latching on the DisplayPort connector provides a secure connection between the adapter and the device port, and assists with strain relief

  • Transfer rate: up to 2.7 GHz symbol rate

  • Gold-plated pure copper conductors for maximum conductivity and bandwidth

SKU

Length

SKU

Length

VC-772S

3'

VC-772E

15'

VC-772G

6'

VC-772T

25'

VC-772L

10'

VC-772X

50'

SKU

Length

SKU

Length

VC-774S

3'

VC-774L

10'

VC-774G

6'

VC-774E

15'

DisplayPort 1.4 Male to Male
  • DisplayPort 1.4 Male to Male Cable

  • VESA certified to meet or exceed DP1.4 specifications

  • Use to connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to an 8k HD display with DisplayPort input

  • Supports resolutions up to 8K@60Hz and 4K@120Hz with High Dynamic Range (HDR) deep color

  • Supports HBR3 bandwidths of 32.4Gbps

  • Extends audio transport up to 32 channels and 1536kHz sample rate

  • Features Display Stream Compression 1.2 (DSC) technique which performs up to 3:1 compression ratio.

  • Latching on connector keeps cable securely plugged in

  • Gold-plated connector provides superior transmission, high reliability and durability

  • Aluminum braid shielding offers protection against  Electromagnetic Interference/Radio Frequency Interference (EMI/RFI)

  • Backward compatible with previous DisplayPort versions

  • All relevant materials are complied with RoHS standards

Download Datasheet (PDF)

SKU

Length

VC-882S

3'

VC-882G

6'

VC-882L

10'

VC-882E

15'

Mini DisplayPort 1.2 Male to Male
  • Mini DisplayPort Male to Male Cable 32 AWG

  • Use to connect an audio video source to a Mini DisplayPort monitor or display

  • 3ft, 6ft and 10ft cables support up to 4k @ 60Hz resolution

  • 15ft cables support up to 4k@ 30 Hz resolution

  • Gold plated connectors for superior transmission, high reliability and durability

  • Aluminum braid shielding offers protection against  Electromagnetic Interference/Radio Frequency Interference (EMI/RFI)

  • All relevant materials are complied with RoHS standards

Download Datasheet (PDF)
DisplayPort 1.4 Male to Male
DisplayPort 1.2 Male to Male
Mini DisplayPort 1.2 Male to Male
DisplayPort Adapter Cables

Type

Part #

Download (PDF)

Description

DisplayPort 1.4 Male to Male Cable

DisplayPort

VC-774S & Variants

download icon

DisplayPort 1.2 Male to Male Cable

DisplayPort

VC-772S & Variants

Mini DisplayPort 1.2 Male to Male Cable

DisplayPort

VC-882S & Variants

download icon

DISPLAYPORT TO VGA M/M CABLE

DisplayPort - VGA

VC792S & variants

download icon

DISPLAYPORT TO DVI-D M/M CABLE

Displayport - DVI-D

VC-762S & Variants

download icon

MINI DISPLAYPORT TO VGA M/M CABLE

Mini DisplayPort - VGA

VC-892S & Variants

MINI DISPLAYPORT TO DVI-D M/M CABLE

Mini DisplayPort - DVI-D

VC-862S & Variants

MINI DISPLAYPORT 1.2 TO DISPLAYPORT M/M CABLE

Mini DisplayPort - DisplayPort

VC-852S & Variants

download icon

USB 3.1 TYPE C TO DISPLAYPORT CABLE

Displayport - USB 3.1 Type C

US3-CDP3 & Variants

download icon

USB 3.1 TYPE C TO MINI DISPLAYPORT CABLE

Mini Displayport - USB 3.1 Type C

US3-CMDP3 & Variants

download icon
